Retail Price List for USA and Canada.

October 2014. CAD price= USD price*1.12

Due to currency exchange fluctuations, prices are subject to change.



Code

Name, description


Price USD

Combo

MICROLIGHT Recommended standard sets for 2 seaters

Combo-1

Mobile intercom for closed cockpit. A pair of headsets UL-100 can be plugged into a linking adapter (MM004), giving a simple intercom between pilot and passenger. Using this system you can move from aircraft to aircraft without any fixed equipment. + MM002 charger for headset batteries.

As this intercom is not connected to aircraft electrical system, there is no electrical noise from it.

microavionics_package1s

798



Combo-1А

The same as Combo-1 but based on UL-200 with ANR and VOX microphone. Recommended for aircraft with high noise level and additional comfort.



1000

Combo-2

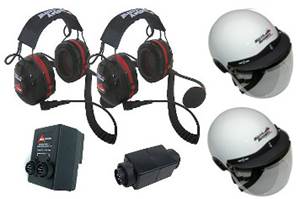

Mobile intercom with helmets (can be recommended for example for PPC, slow trike, aircraft with tall windshield and for pilots using protective glasses instead of visors) 2  UL-100 headsets + 2 MM021  +  MM004 + charger MM002.

microavionics_package2

1151

Combo-2А

The same as Combo-2 but based on UL-200 with ANR and VOX microphone. Recommended for aircraft with high noise level and additional comfort.



1352

Combo-3

Mobile intercom with helmets and visors (can be recommended for example for PPC, trikes, airplanes, gyros etc.)  2  UL-100 headsets + 2 MM020B  +  MM004 + charger MM002.



microavionics_package3

1252

Combo-3А

The same as Combo-2 but based on UL-200 with ANR and VOX microphone



1453

Useful option for Combo-3А

and

Combo-3АR





Chin and microphone wind protection:

ABC 2хMM024 (ABC)

Neopren 2хMM024A (N)



MM024_Small

MM024A_Small

+67 or +92

Combo-4

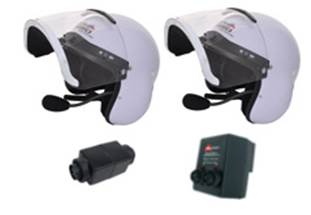

Mobile intercom with integral helmets for open cockpit aircraft (Trike, airplane, gyro etc.). . A pair of MM001B helmets can be plugged into a linking adapter (MM004), giving a simple intercom between pilot and passenger. Using this system you can move from aircraft to aircraft without any fixed equipment. + MM002 charger for headset batteries.

As this intercom is not connected to aircraft electrical system, there is no electrical noise from it. Additional wind and noise protection





microavionics_package4

1344

Combo-4А

The same as Combo-4 but based on UL-200 with ANR and VOX microphone 2 helmets MM001С +  MM004 + charger MM002



1568

***+radio

If you require connection to a radio, cell phone, second radio or music then you would connect each headset to a radio interface MM005 and add PTT ММ008 or ММ009

microavionics_packager

420

Combo-1R

Intercom-radio system for closed cockpit  2 X UL-100 + radio interface ММ005 + PTT MM009(8)

M005 will charge headsets and radio if connected to 12V aircraft power supply.



microavionics_package1r

1067

Combo-1АR

The same as Combo-1R but based on UL-200 with ANR and VOX microphone.  2 X  UL-200 +  ММ005 + PTT MM009(8)



1277

Combo-2R

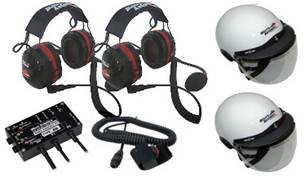

Intercom-radio system with helmets for open cockpit aircraft (can be recommended for example for PPC, slow trike, aircraft with tall windshield and for pilots using protective glasses instead of visors)  2  UL-100 headsets + 2 MM02 + ММ005 + PTT MM009 (MM008)

microavionics_package2r

1420

Combo-2AR

The same as Combo-2R but based on UL-200 with ANR and VOX microphone. 2  UL-200 headsets + 2 MM02 + ММ005 + PTT MM009 (MM008)



1630

Combo-3R

The same as Combo-2R but helmets with protective visors (can be recommended for PPC, trikes, 3-axes planes, gyros)  2  UL-100 headsets + 2 MM021 + ММ005 + PTT MM009 (MM008)



microavionics_package3r

1520

Combo-3AR

The same as Combo-3R but based on UL-200 with ANR and VOX microphone. 2  UL-200 headsets + 2 MM021 + ММ005 + PTT MM009 (MM008)



1730

Combo-4R

Intercom-radio system with integral (Flycom type) helmets for open cockpit aircraft (can be recommended for PPC, trikes, 3-axes planes, gyros) 2 helmets MM001B +  radio interface ММ005 + PTT MM009 (or MM008)

microavionics_package4r

1663

Combo-4AR

The same as Combo-4R but based on helmets with ANR and VOX microphone headsets2 helmets MM001C +  radio interface ММ005 + PTT MM009 (or MM008)



1887



MICROLIGHT Headset & Intercoms System

MM001   or MM001-BLUE

UL-100 Self contained electronics with onboard NIMH batteries giving over 100 hours between recharge (no re-charge is needed if using a powered radio interface MM005). The headset uses a military specification noise canceling electret microphone designed for high noise environments coupled with a speaker that gives excellent sound qualities. The ear defender used is a twin skinned earcup, very similar to double glazed windows. Hence the earcup cuts out more noise than most other single skinned defenders on the market. Fitted with the latest liquid gel ear seals which reduce the pressure point effect from extended use also for users wearing glasses. The headset comes with individual volume dial mounted on the left earcup, large wind muff as standard (optional small wind muff to order) and strong PUR curly cable with 7 pin locking bayonet socket.



A pair of headsets can be plugged into a linking adapter (MM004), giving a simple intercom between pilot and passenger. Using this system you can move from aircraft to aircraft without any fixed equipment. If you require connection to a radio, cell phone, second radio or music then you would connect each headset to a radio interface (MM005). Of course a headset can be used on its own or as a pair.



 LYNX compatible.

MM001A_MG001A_Small

336

MM001A   or

MM001A-BLUE

UL-200 Microlight headset. This headset has been specifically designed to work in open and enclosed cockpits with specific attention to noise reduction and clear communication. The headsets are compatible with our UL100 headsets, those of the Pilot and Lynx Avionics Micro system.The headset is fitted with ANR (active noise reduction) and VOX. ANR listens to the noise penetrating the ear cup and cancels this noise out using phase reversal technology. The result is an extremely quiet ear defender, even under the harshest environment. The ANR technology reduces this noise by 6dB, which is twice as quiet compared to non ANR.

The UL-200 also has VOX. VOX is a system where the microphone is switched off when you are not speaking. This in turn switches off the speakers in the ear cups to give an exceptionally quiet headset. The VOX level is user adjusted by a small control on the headset

The UL-200 is a first of its kind for microlight aircraft. The result from VOX & ANR means you have a very quiet headset.

As per the UL 100 this headset has integral power so can be connected back to back with a similar headset or connect to the radio interface for radio mobile telephone, music.Each  headset is independently controlled which has volume dial and VOX adjuster on the left earcup.

• Liquid gel ear seals
• Military specification noise canceling electret microphone
• High quality speaker for superior speech reproduction
• SMD electronic noise filtering circuitry
• Twin skinned ear defender for better ambient noise reduction
• Heavy duty PUR curly cable with 7 pin bayonet locking connector



Picture - MM001(A)-BLUE

MM001 and MM001A headsets can be used with and without helmets.

MM001-BLUE-MM001A-BLUE-MG001AA

440

MM001B

Integral Headset Helmet System.
UL-100 Built in headset
High performance electronics with user selectable Normal or Filter setting for a quieter headset. Built using a high performance low power audio amplifier, utilising surface mount components and an electronics speech processor to remove unwanted noise.
The filter setting (user selectable) reduces the amplified background noise within the headset.
Self contained, can be connected directly back to back with another headset or helmet headset using a linking adapter (Part No.MM004) or connect to our radio interface (Part No.MM005).
Helmet
CE marked and EN966 certified. Light weight 870gram composite GRP shell with EPS trauma liner. Extra comfort and wind protection is achieved using the rear and side neck padding. Quick release two point chin strap.

Visor Construction
Using the renowned BHV Jet Flip visor. UV protected and impact resistant
Visor lock
ABS molded AirDam chin guard with 4mm nylon backed neoprene

Headset Construction
Gel ear seals.
Hearing protection, using high specification ear defender
Noise cancelling military specification microphone
Open cell microphone sponge muff
Volume dial on rear left of helmet
Coiled headset cable manufactured from PUR and screened with a foil wrap
Quick release 7 pin locking female connector (Part No. MM001B or MM001C) LYNX Compatible.

Supplied with
Composite helmet
Headset UL-100 electronics
BHV -  UV resistant visor
Neoprene AirDam wind deflector
Fleece neck roll
Helmet bag


MM001B_Small

615

MM001C

UL-200 - Integral Headset Helmet System, same as MM001B but with UL-200.
Maximum performance for open and enclosed cockpit. Including ANR (Active noise reduction) and VOX. Built using a high specification low power audio amplifier, using surface mount technology, with an electronic speech processor to remove unwanted noise.
ANR listens to the noise penetrating the ear cup and cancels most of this noise out using phase reversal technology. The result is an extremely quiet ear defender, even under the harshest environment. The ANR technology reduces this noise by 6dB, which is twice as quiet compared to non ANR.

The UL-200 also has VOX. This is a system where the microphone is switched off when you are not speaking. This in turn switches off the speakers in the ear cups to give an exceptionally quiet headset. The VOX level is user adjusted by a small control on the headset

The UL-200 is a first of its kind for microlight aircraft. The result of VOX & ANR gives a very quiet headset.

As per the UL 100 this headset has integral power so can be connected back to back with a similar headset or connect to the radio interface for radio, mobile telephone and  music.

Each  headset is independently controlled which has volume dial and VOX adjuster on the left earcup



MM001C_Small

727

MM001D

Same as MM001B. Stereo jack plug Flycom compatible.



Color – white for all helmets. Size: S:55-56cm, M:57-58cm, L:59-60cm & XL:61-62 cm.  .

MM001D_Small

615

MM002

Twin Headset charger with individual charging indicator. For charging one or two microlight or paramotor headsets.

MM002_Small

92

MM003

Used when flying solo to switch on a single headset. Allows the headset to monitor engine noise.

no

20

MM004

Typically used by instructors who move between aircraft and want to use their own headsets. The adapter joins two MM001 microlight headsets directly to each other providing a direct intercom connection.

MM004_Small

37



MICROLIGHT Radio equipment, cables&adapters for ULM, GA, Gyro

MM005 New Version

Not just a simple radio interface. The latest electronic technology were used to produce an efficient powered radio interface, with very low power consumption typically only 6mA , and all the features a pilot would require. The user can change various selectable features which reconfigure radio type (i.e. from type ‘A’ [Icom A20] to Type ‘BB’ [Icom A6]) etc, control intercom volume levels, mute audio levels, etc.

The voice reproduction through the intercom unit is very bright and clear, optimised for noisy environments. Connection to the mobile telephone is equally as clear and the Audio volume levels can be configured dependant upon what telephone or second radio you are connecting.

Fully specified with  five LED status monitors showing power, TX, RX and headset batteries charged. Connect an airband radio, and for chatting to your flying group, a second PMR type radio can be connected at the same time. We recommend PMR the Alan 446 radio. Connection for mobile telephone is a standard feature. Stereo music input  (twin audio-in for Hi or Low audio level) and separate stereo audio output. Twin PTT inputs, when P1 transmits the mic on P2 will mute and vice versa. User can select either 10v  (Icom A6 etc) or 12 volt (Icom A3 etc) output to power the radio . User adjustable max intercom volume level and adjustable max mic TX level . Music, second radio, mobile telephone will mute automatically once the master radio receives an incoming signal. Auxiliary Control output for two colour LED on the dash board showing RX and TX (optional accessory). The interface comes pre-configured and ready to plug and go. The interface incorporates a batter monitor that turns the battery charging circuit of when headsets are fully charged, this extends the life of the headset batteries. There is a tone bleeper when you first press the PTT switch to indicate the PTT is activated. Fully compatible with Lynx Micro System components.



Inputs/ Outputs.

Connect up to two radios at once

Mobile phone input

Twin PTT

Hi Stereo Music Input (PCAS/ Music/ GPS audio)

Low Audio input (PCAS/ Music/ GPS audio)

Line out recording Output

Auxiliary LED indicator

Powers radio from the interface



Features.

Micro Amp power. Typically 3mA per headset connected, when using main supply connected.

LED lights show,

1.       Pilot headset batteries full charge indicator.

2.       Co Pilot headset batteries fully charged indicator.

3.       RX LED.

4.       TX LED.

5.       Ignition power on.



Switchable 10v or 12v output for all Icom radios.

Automatic soft  audio muting circuit. Mutes second radio, music, & telephone when the master radio receives a transmission.

User adjustable, TX mic gain & EQ adjuster, intercom max volume adjuster, muting sensitivity.



Included.

Radio Interface unit

Ignition Power supply lead MM007, no need to connect power as the interface will use the headset power.

Mobile telephone lead MM011.

Stereo Audio input/ output lead MM010.



MM005_Small

370

PHONE

Cellular mobile telephone lead with 3.5mm jack. To connect new models (IPhone, Samsung Note, Galaxy etc.) to MM005 and MM006C through a headset socket. No additional adapters.



34

MM006C

Amplified GA Music & telephone adapter + wire connection

adapter

168

MM007

Power supply cable for ММ005

no

17

MM008

Push To Talk switch with velcro mount with curly cable and bayonet connector plug. The PTT can be fastened using the velcro to the control frame of a Delta/ Flex wing or fasten to and tube etc.



MM008_Small

64

MM009

Press To Talk switch for panel or column mounting with 2 meters of straight cable. The PTT is a tactile switch (you feel a click when you press the button) and the switch comes with a stainless decorative steel dress nut. We recommend mounting on either the control stick or on the control panel.



MM009_Small

64

MM010

Stereo Audio 'IN' & 'OUT' wire. For Mk 2 radio interface.



5

MM011

Cellular mobile telephone lead. May also require Base adapter.



12

MM012

Base adapter. Used to convert MM011 or MP003 to mobile phone connector.



27

MM013

Second radio lead. Twin jack curly cable. - Specify Radio make+model. For

GME, Icom, Alinco, and other twin jack radios. For single jack, also buy

MM014,A,B,C,D,DD,E.. No external PTT required, use radio PTT to transmit.



27

MM013A

Second radio lead. GME TX 3100, 3200, 3300, 3400 Series. Also requires

MM008 curly PTT or MM009 Stick/ panel mount PTT



100

MM014

CT-44 radio lead adapter, for various radios. See radio compatibility for more info. For Yaesu VX.



27

MM014A

LA-44 Yaesu single jack adapter for VXA 100,120,150, 200, 210. See radio compatibility for more info.



42

MM014B

Interface power lead Adapter for Vertex VXA radio’s.



27

MM014C

CT-96 Vertex/Yaesu VXA220,300,700  large plug adapter for use with type ‘L’ interface(MM005). Requires separate power supply to radio



33

MM014D

CT-91 Vertex/Yaesu VXA220,300,700 standard twin plug adapter for use with type ‘M’ interface(MM005). Requires power adapter  MM014B



33

MM014DD

CT-91A Vertex/Yaesu VXA220,300,700 standard twin plug adapter for use with type ‘B’ interface / paramotor headset. Requires power adapter  MM014B for MM005



47

MM014E

JT-01 Jingtong JT208 adapter for use with MM005/MP001 Type ‘A’



42

MM015

Power Filter – Small 1Amp



112

MM016

GA headset – Powered interface Adapter



112

MM016A

Flycom headset – Powered interface Adapter



124

MM016B

ULM headset to twin jack plugs



112

MM016C

Headset adaptor. Microlight headset to MT03 Intercom



112



GA Headsets & Intercoms

MG001

Passive GA headset (with 2 jacks) - fitted with standard black/ red ear defender. See web site for more information.

Same as MM001(A)

336

MG001A

ANR GA headset - fitted with standard black/ red ear defender. See web site

for more information

Same as MM001(A)

445

MG001AA

ANR GA headset - fitted with Blue ear defender - see web site for more

information.

Same as MM001(A)-BLUE

445

MG001B

Integral Helmet with built in GA100 headset

Same as MM001B

615



Gyrocopter Helmets & Headsets

MC001-MT

MT Gyro compatible headset. Can be supplied with helmet clips to order for

Icaro or similar helmet.

Same as MM001(A)

336

MC001B-MT

MT Gyro compatible. Integral Helmet with built in headset, Visor & Neoprene

Chin Guard

Same as MM001B

615

MM016C

Headset adaptor. Microlight headset to MT03 Intercom



125



PARAMOTOR (UL Solo) Intercoms-radio systems

MP001   or

MP001A

PM-100 Stereo Paramotor headset with side tone.

Fully specified stereo paramotor headset. Designed to be worn under a MicroAvionics CE marked safety helmet. No other UK manufacture has all these features. User can configure to work with any radio.

 Auxiliary connection for :

                 Stereo Music, Mobile Telephone, Stereo Audio Out, Second Radio, Remote PTT, Tandem intercom.

The headset has ‘Side Tone’. Side tone enables the user to hear their own voice whilst transmitting, this eliminates the need to shout and transmits a clear audio transmission.  Two headsets can be linked together for tandem use, using the  optional tandem intercom lead.

Main Components

                 Gel Ear Seals—can be retro fitted to other headsets.

                 Auxiliary Locking bayonet plug.

                 High specification noise canceling mic.

                 Volume dial on each headset.

                 Padded headband for more comfort.

                 PTT on headset.

Features.

                 User configurable for any radio

                 Electronic noise filtering circuit.

                 Comfortable to wear.

                 Flexible boom mic with large sponge wind muff.

                 Twin skinned ear defenders that cut out more ambient noise, up to 3 times quieter than other headsets.

Accessories.

                 Stereo Music Lead

                 Stereo Audio Out lead

                 Mobile Telephone Lead

                 Second Radio Lead

                 Remote PTT Lead

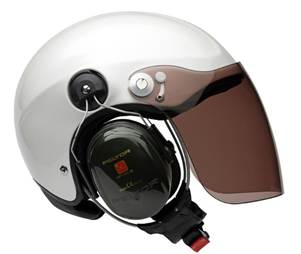

MP001A Helmet mount for Icaro or similar helmet



350

MP001B

Integral helmet with PM100 built in headset

Same as MM001B

644

MP002

Second radio lead for MP001, joining two radios at once.



55

MP003

Cellular telephone lead to connect MM006. For MP001 only.



35

MP004

Stereo Audio IN for CD / MP3 Player (Curly cable). Specify for MP001 or MP006.



35

MP005

Twin lead, Combine,  MP003 or MP004



55

MP005A

Twin lead Combine, MP002 or MP007 with MP003 or MP004



77

MP007

Paramotor remote PTT. Specify for  MP001 or MP006.



55

MP008

Tandem intercom  headset joining lead – for MP001



77



 Helmets –



*INTEGRAL HELMET SYSTEM - See Microlight, GA & Paramotor section





MM020A

[ Helmet, Visor,  Visor Lock & ABS AirDam.]
Tested and certified to European Airborne sports standard EN966 and carries the CE marking.
A composite helmet designed to be worn over a standard microlight/ ULM headset. The outer shell is made from composites and has an EPS shock absorbent liner with a webbing strap and quick release buckle. The helmet is light weight, at only 700grams. A clear or half tint visor is available. Fitted with a ABS Air Dam wind deflector to the bottom of the visor.  Our visors are UV protected, have an anti scratch coating and have been tested to British standards .

Helmet sizing is measured around the head just above the eyebrow sizes are S:55-56cm, M:57-58cm, L:59-60cm & XL:61-62 cm.

Comes with a blue screen printed helmet bag & fleece neck roll

MM020A_Small

260

MM020A-N

Same as above with neoprene MM024A AirDam instead of MM024

MM020A-N_Small

270

MM020B

Same as above, no Air Dam.

MM020B_Small

225

MM021

Same as above, no visor and Air Dam.

MM021_Small

177

MM021A

Headset / helmet bag



8

MM022

Replacement Clear Visor with visor lock

MM022_Small

50

MM023

Replacement Half Tint Visor with visor lock



67

MM023A

UPGRADE to half tint when buying MM020A or MM020B



17

MM024

Air-Dam' wind deflector ABC

MM024_Small

35

MM024A

AirDam Neoprene, wind deflector for integral helmet

MM024A_Small

47

MM024B

Fleece neck warmer

MM024B_Small

14



Strobe Systems

MM030

Single head 12 volt, self contained strobe. New brighter version

MM030_Small

143

MM031

Single Head High Power system with 3 head driver box (specify tear drop or

Cylinder lens)



309

MM032

Double Head High Power system with 3 head driver box (specify tear drop or

Cylinder lens or mix)



397

MM033

Triple Head High Power system with 3 head driver box (specify tear drop or

Cylinder lens or mix)

MM033_Small

485

MM034

Replacement Tear Drop Lens



88

MM035

Replacement Cylinder Lens



88

MM038

Replacement High Power Head Strobe Driver box. Connect upto 3 strobe heads



222

MM040

12 volt 1.2Ah battery



20





Antennas





MM050

Stinger, Metal whip antenna Stinger – for 3 axis

MM050_Small

73

MM051

Stinger, Flexible antenna – for Delta

MM051_Small

93

MM052

Stinger, Trike – King post antenna, for Delta / Flex wing. Includes Extension

cables, split and hang bolt



106

GST-HST for Canadian orders + QST for Quebec

To place your order contact Air Trikes Ent: info@airtrikes.net   taravas@mail.ru
Phone:       +1(450)202-7772

Cellphone: +1(438)879-8122

Skype: taravas3



Air Trikes Enterprises website: http://airtrikes.net/microavionics.shtml MicroAvionics UK website: http://www.microavionics.co.uk
