Parts for Ultralight and Experimental Light Sport Aircraft.
Rexon VHF Air Band radios, aviation communication systems, headsets...
Established in 1990, Rexon Technology Corp. (Taiwan) has been in radio manufacturing business for over 20 years.

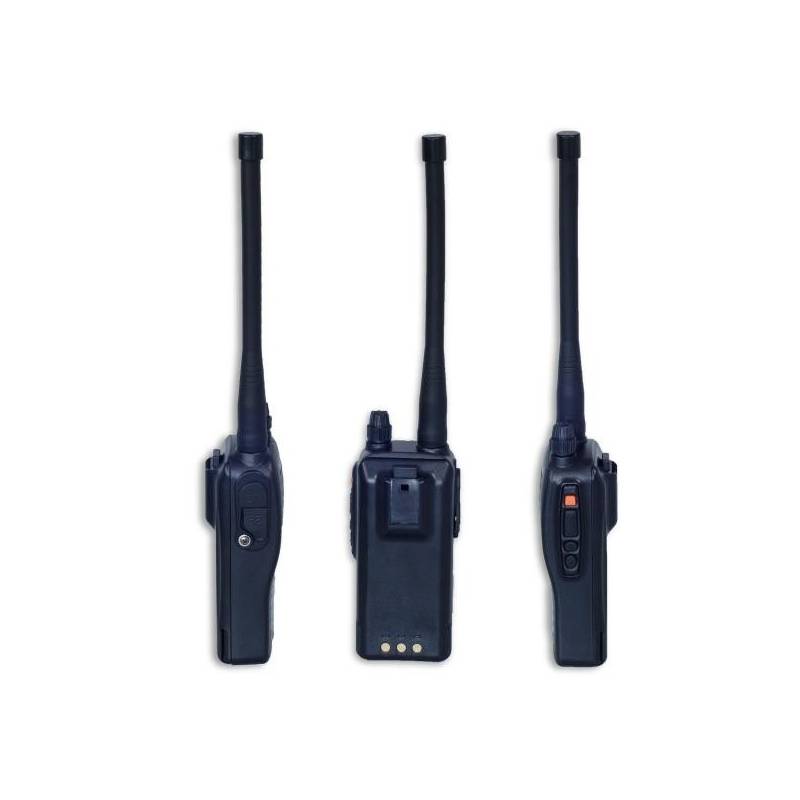

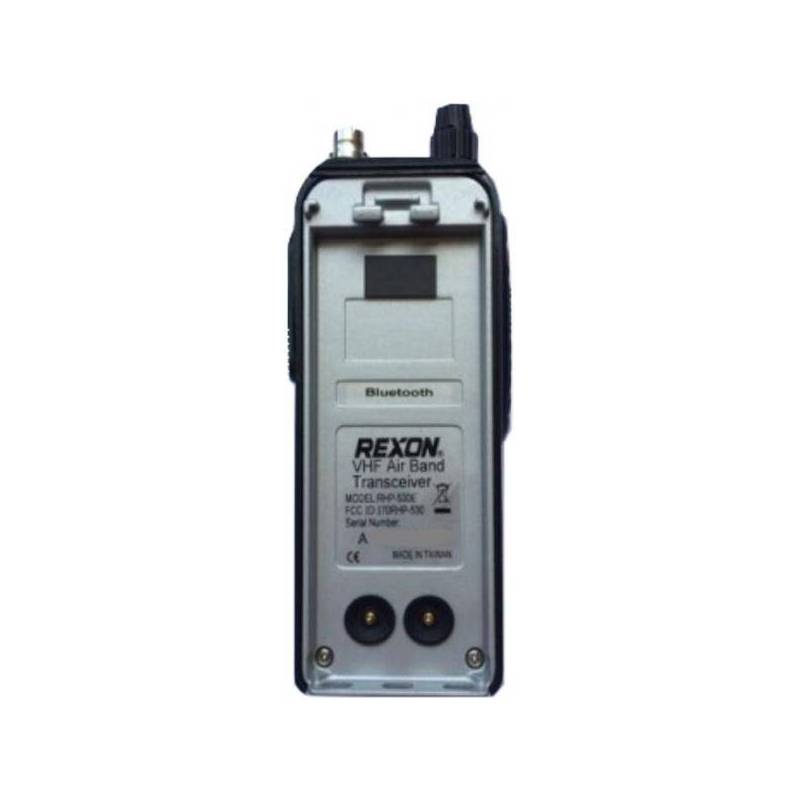

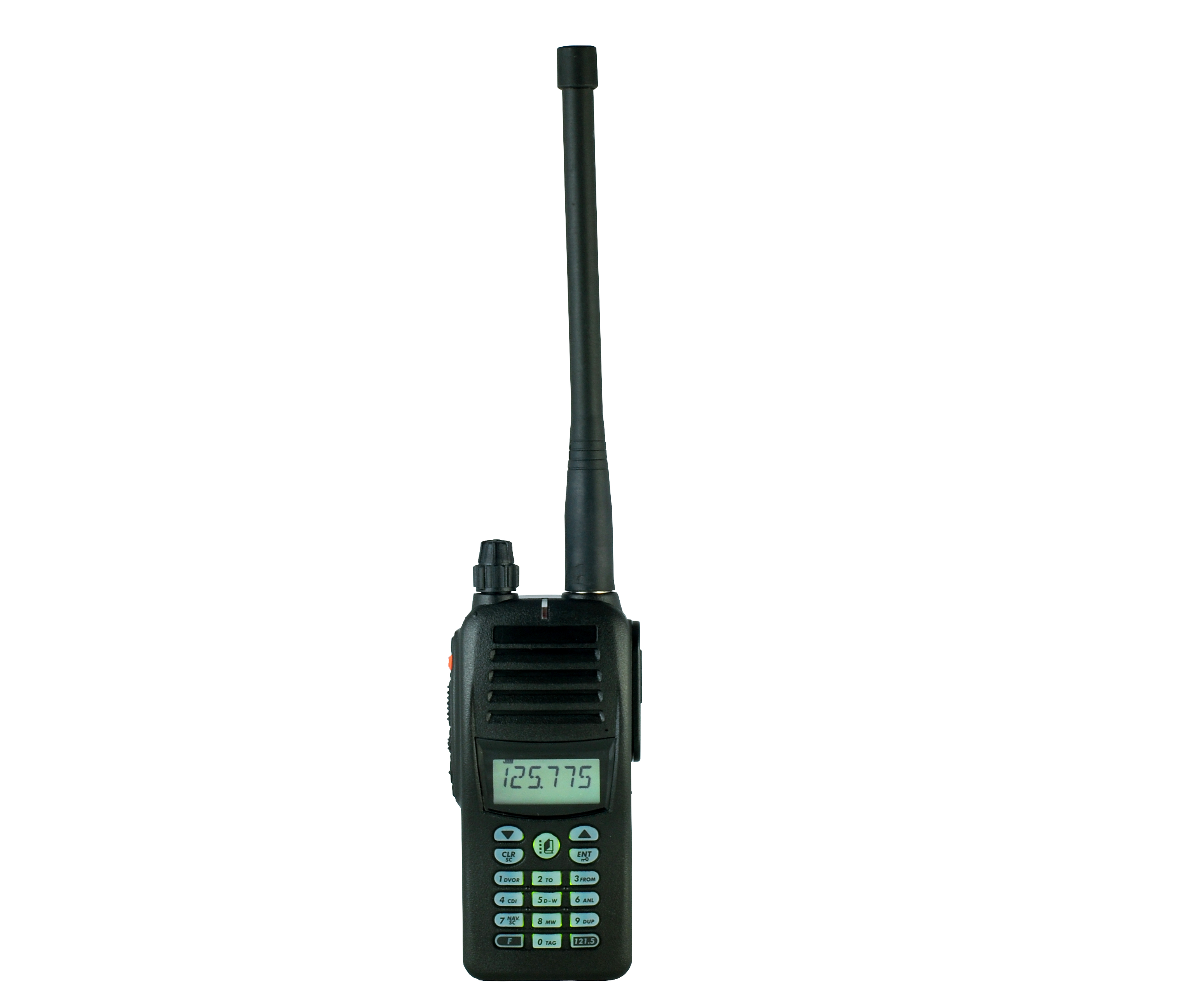

RHP-530 Nav/Com VHF Air Band Radio. My impression as a pilot after comparing this radio with Icom A6/A24 and A14 handheld radios - this radio is at least not worse. I personally like its
very goodquality of materials and assembling.Li-Po batteryis better than NI-MH and Li-ion used for my Icoms. The same standard headset 2.5+ 3.5mm stereo jack connector used for this
radio and for IcomA6 A14 so no problemsto use this radio instead of Icom handheld one. The same power and basic functions +some additional useful features, for example:
VOX (hands free) transmission allows to operate the transmission without PTT button.
Intercom function(optional 2 headsets +intercom adapter cable required).
Options:

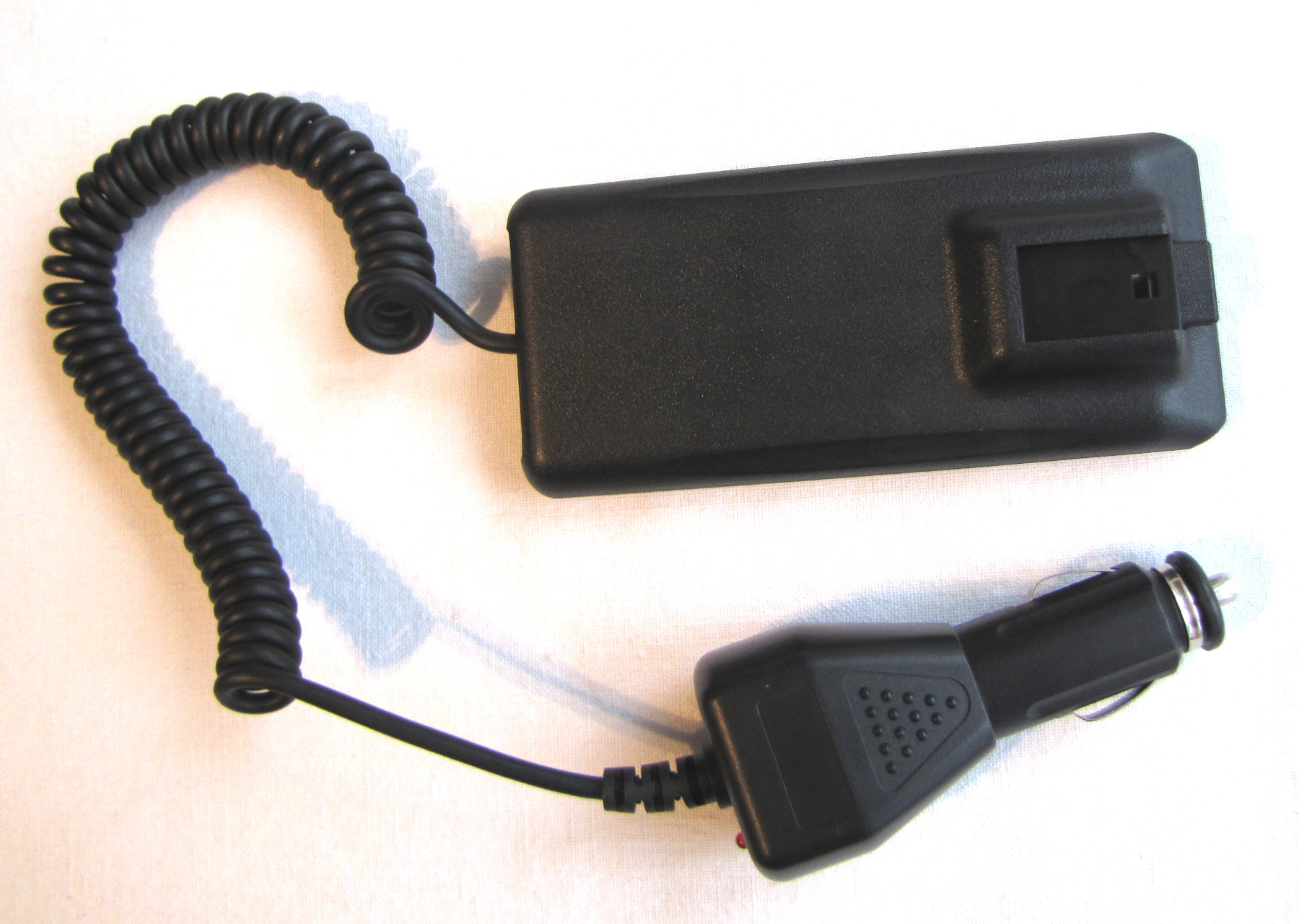

Battery eliminator with cigarette lighter charger. Allows to connect the radio to external 12V power source.

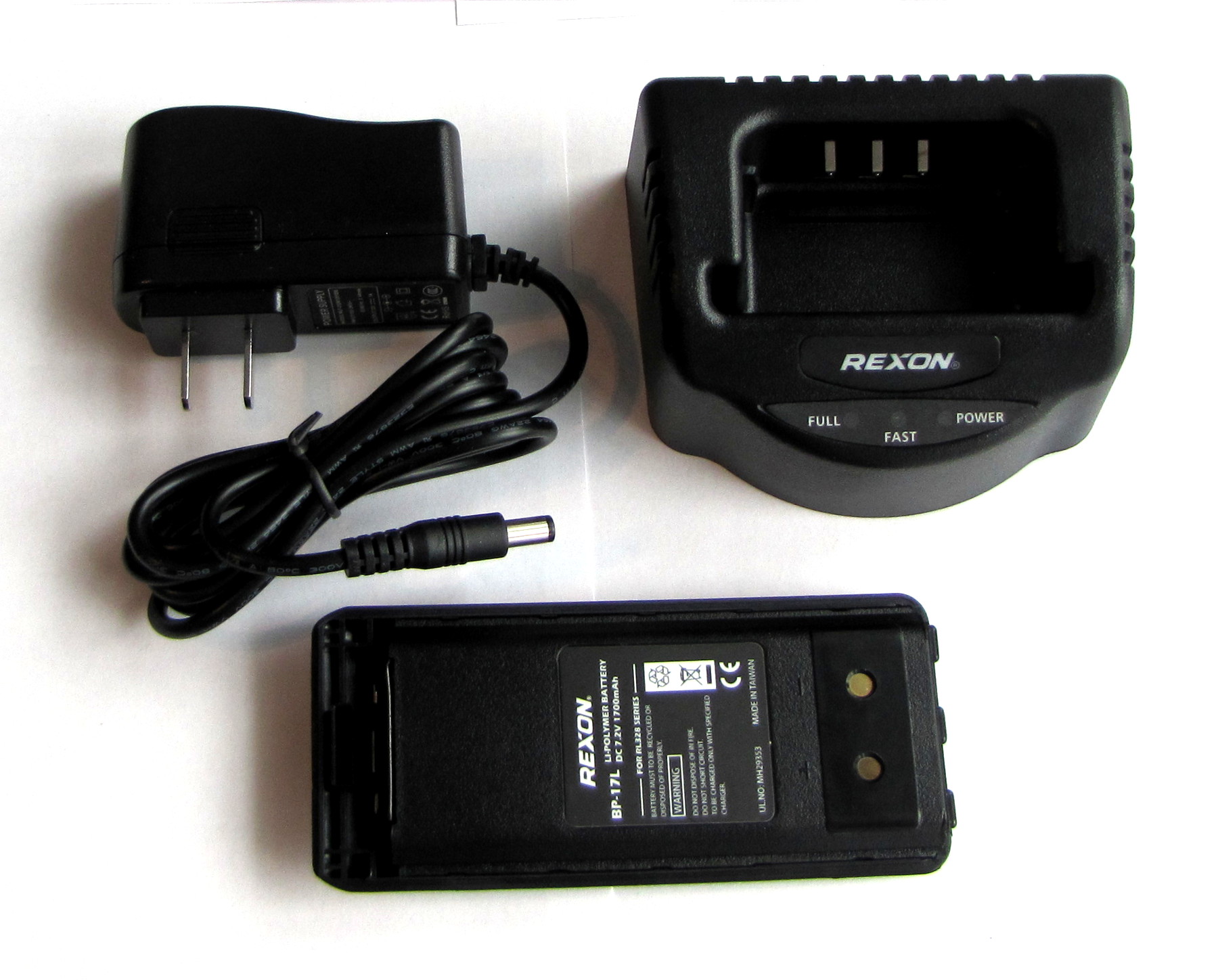

Li-Po 1700 mah battery pack + 100-240V fast battery charger.

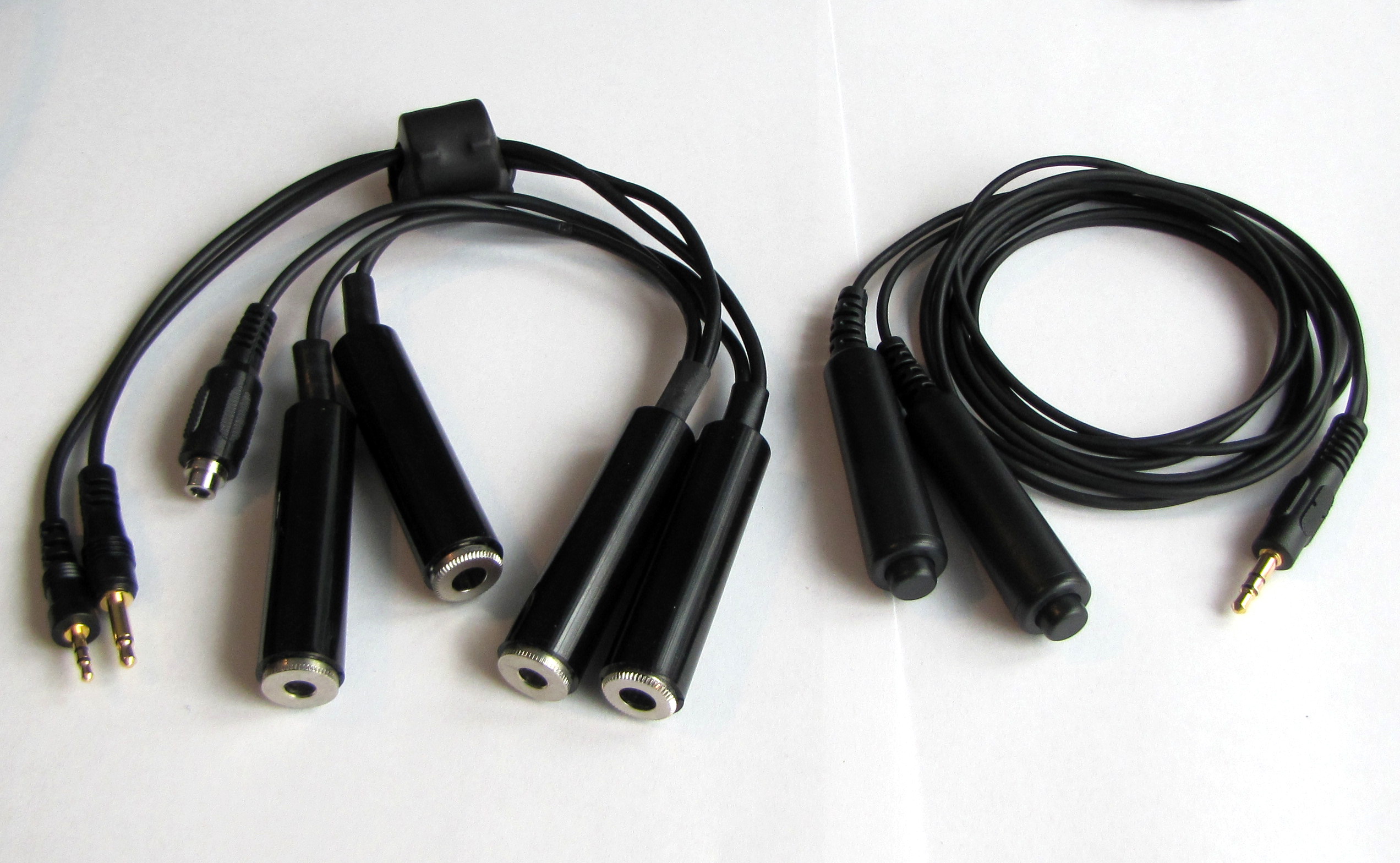

Intercom adapter with connectorsfor 2 x GA headsets and external PTT button+double Push-To-Talk(PTT) cable.
Aviation GA standardPNR headset.

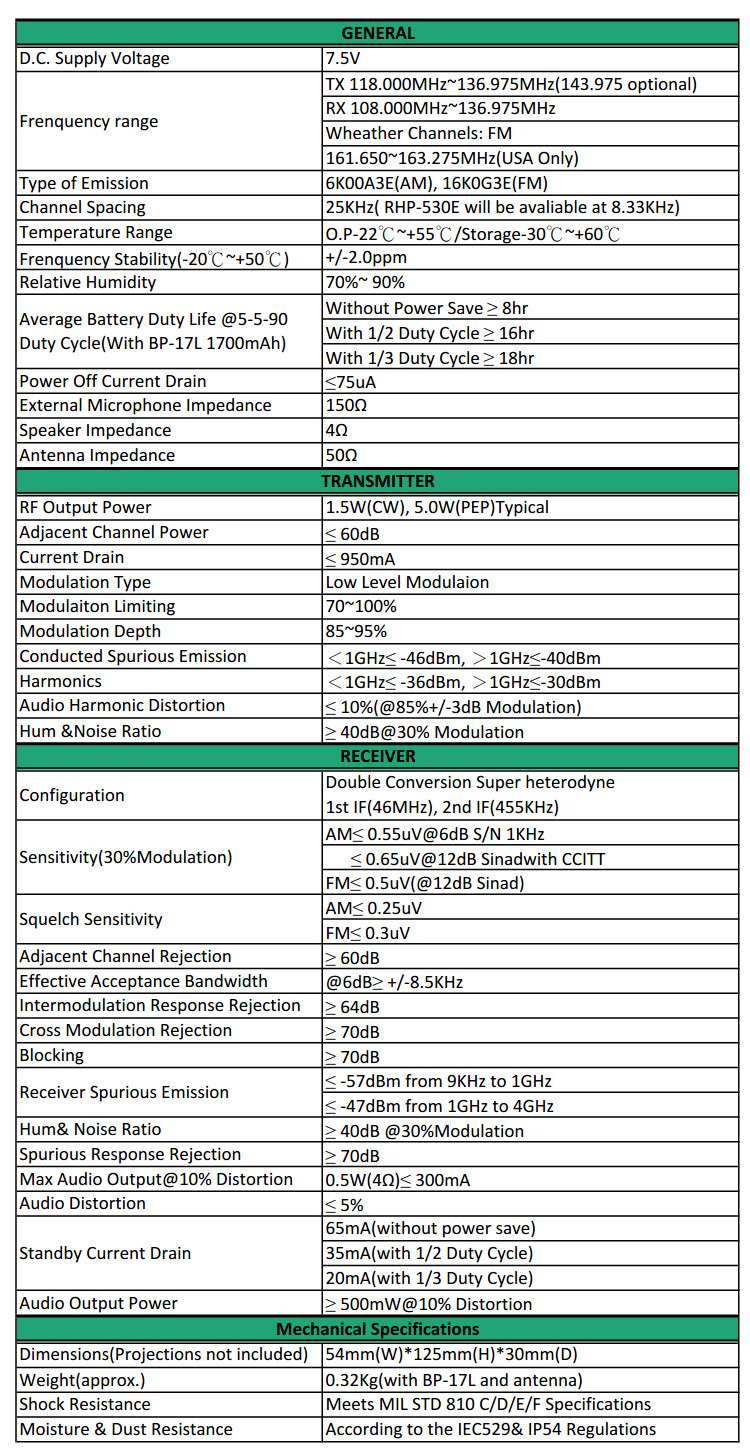

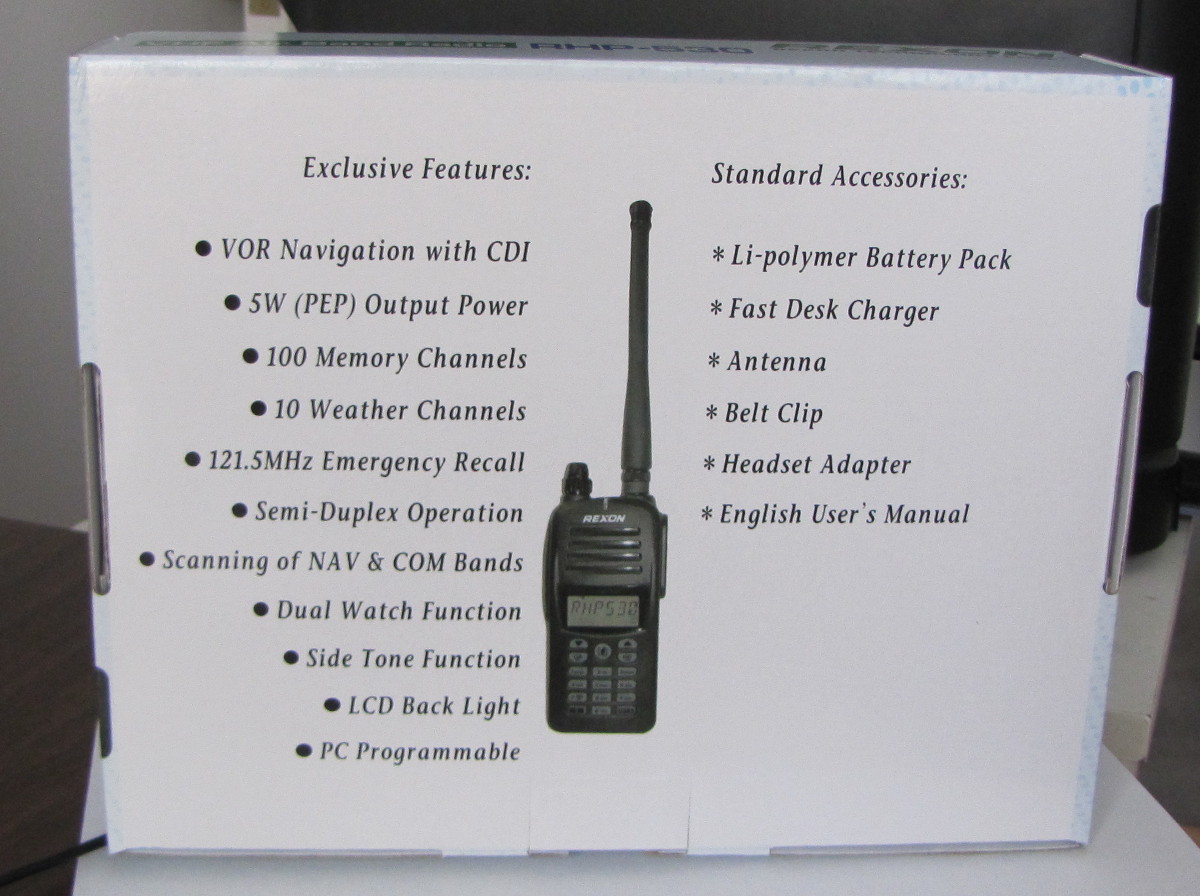

Radio Specifications:
* TX: 118 to 136.975MHz
* RX: 108 to 136.975MHz
* Weather channels: 161.650 to 163.275MHz (the US only)
* 5W output power
* 10 weather channels
* 100 memory channels
* 121.5MHz emergency frequency recall
* Semi-duplex operation
* Scanning of COM and NAV bands
* Dual watch function
* One touch selection of active and standby frequency
* Side tone function
* LCD back light
* Programmable VOX (hands free) transmission
* Intercom function

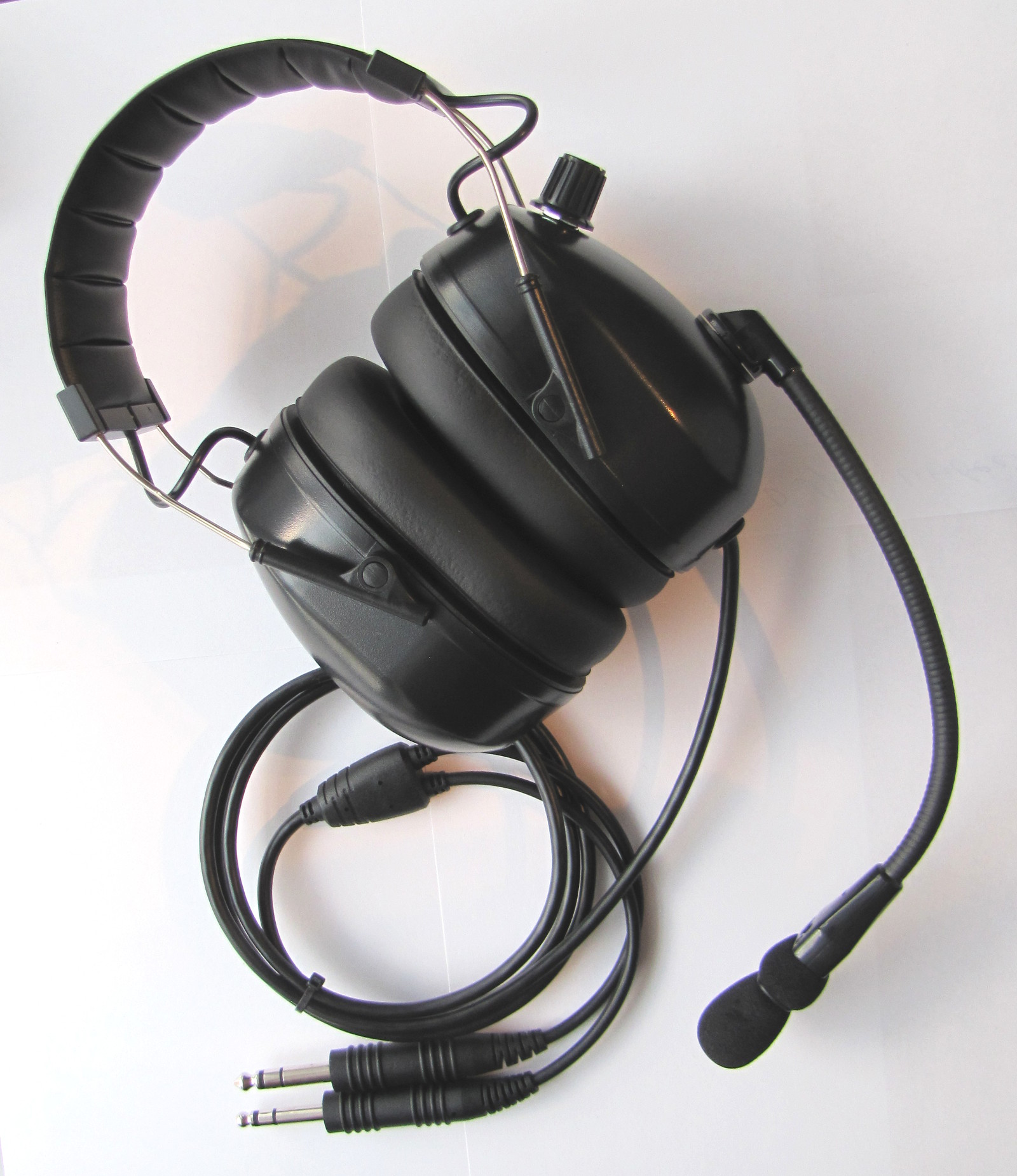

Headset:
*Unique band design, stainless steel wire for constant pressure over long periods of use
* Exclusive flex-boom articulating fulcrum, adjustable boom mic
* Ultralight, less than 1LB weight
* Extra-soft, high-density foam ear seals
* Single volume control knob
* High-density foam windsock for mic is included, it can prevent many wind noises
* Extra-soft foam head pad
* Noise canceling electret microphone with amplifier
* Weather sealed (silicone rubber cover) cable
* GA standard radioconnector 2 jacks
There are 3 main radio packages:

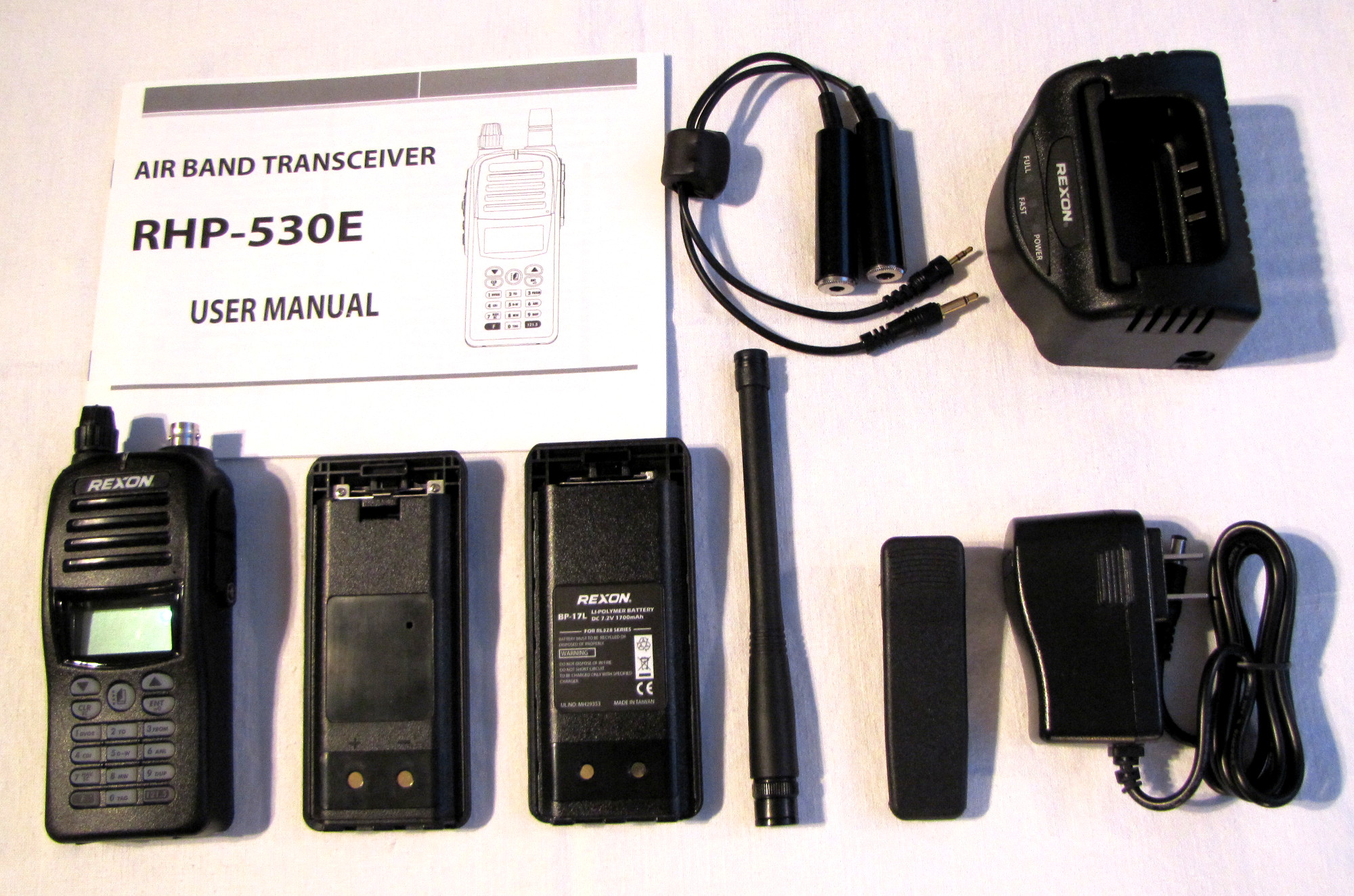

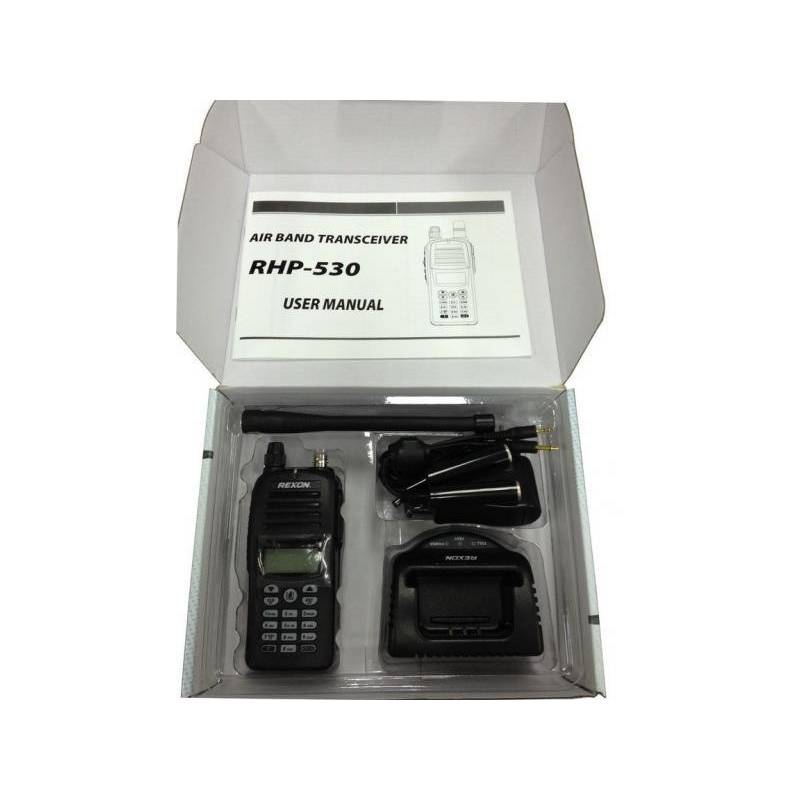

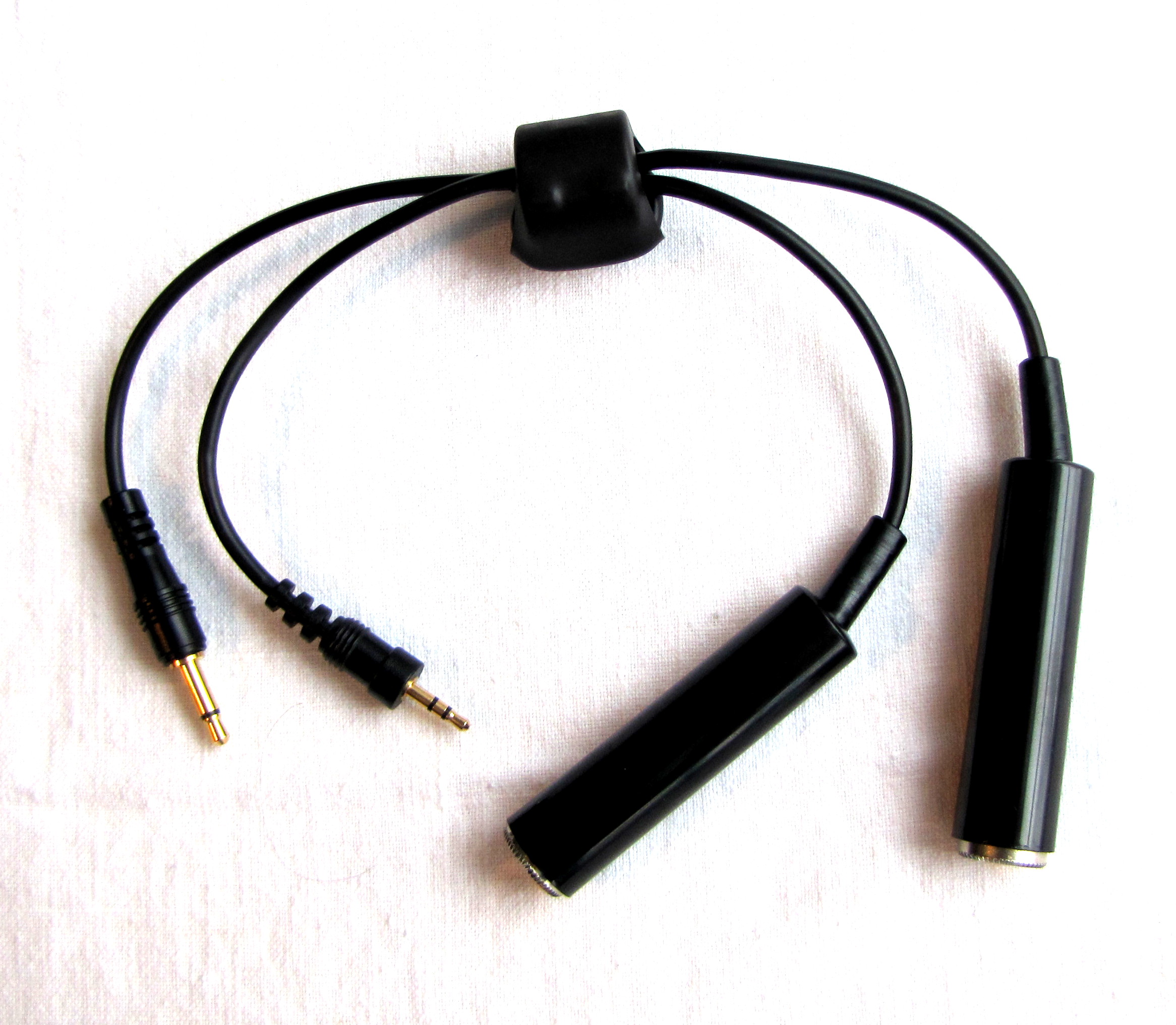

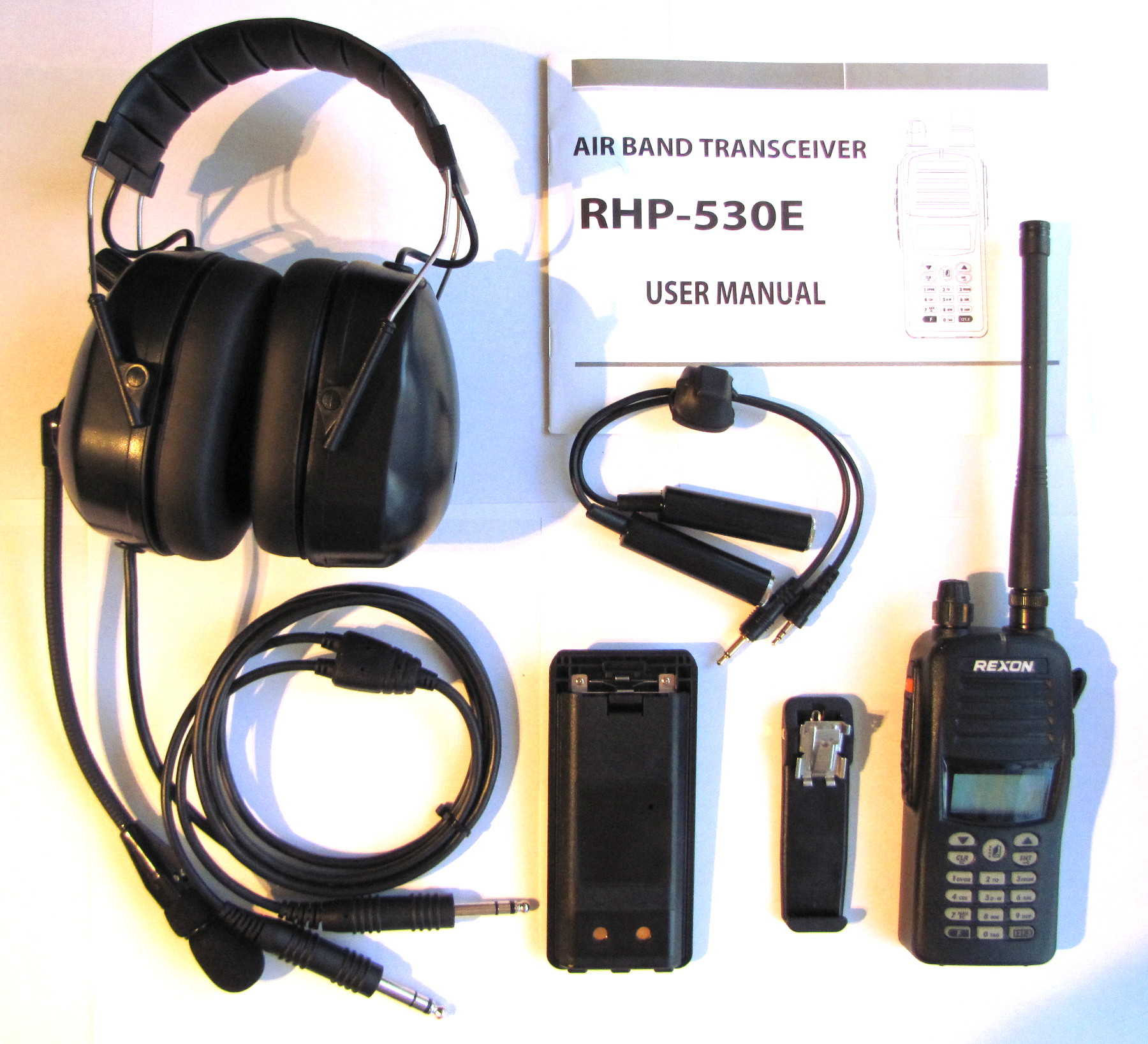

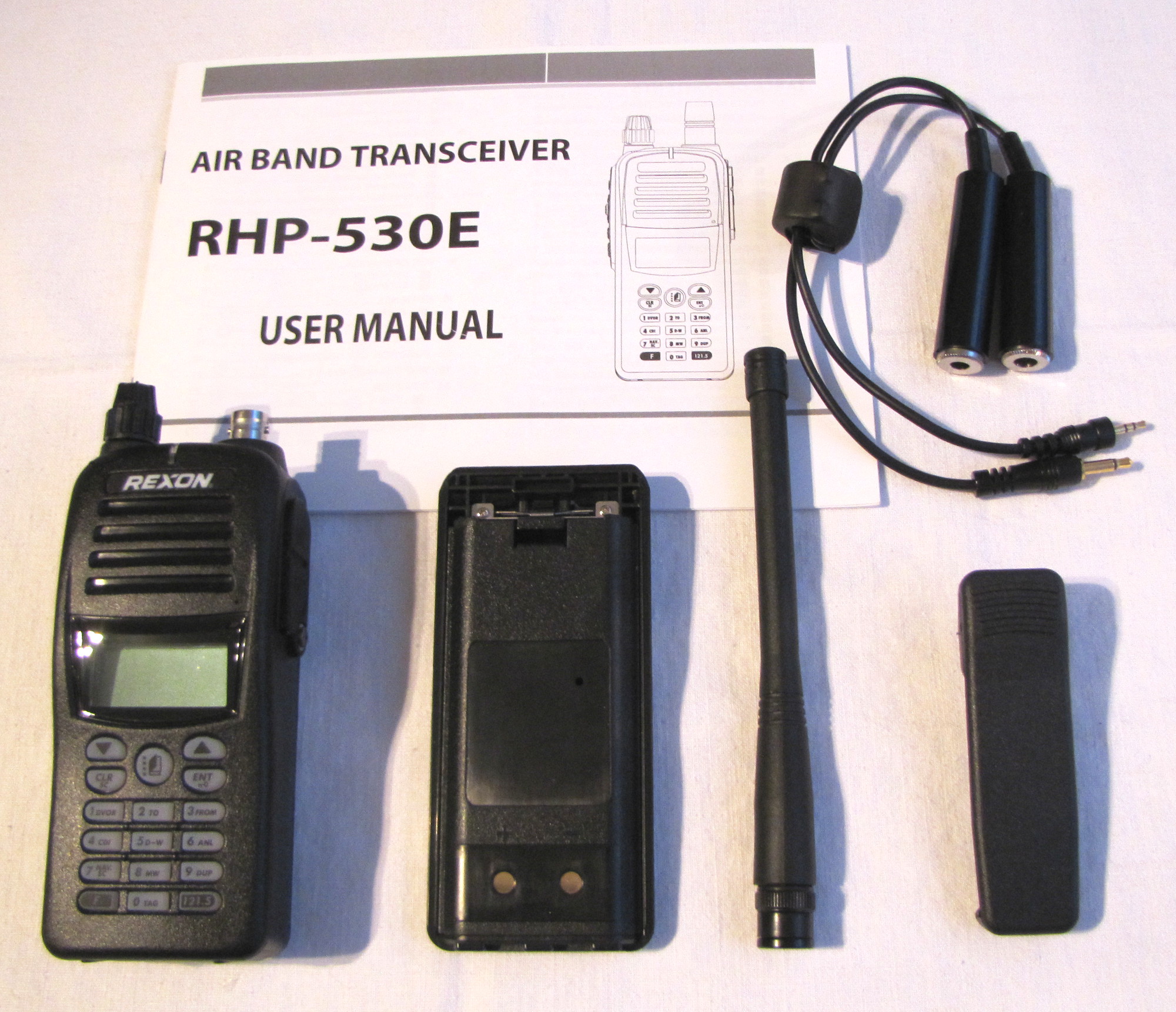

Basic - The package consists of Rexon RHP-530 radio, battery case for6 AA batteries, antenna, GA headset adapter, belt clip and User Manual in English. It is agreat
ground support radio, main radio for Ultralight or Light Sport aircraft orspare radio for GA airplane.
It can be recommended forrescue packages (boat, plane, yachtetc.)

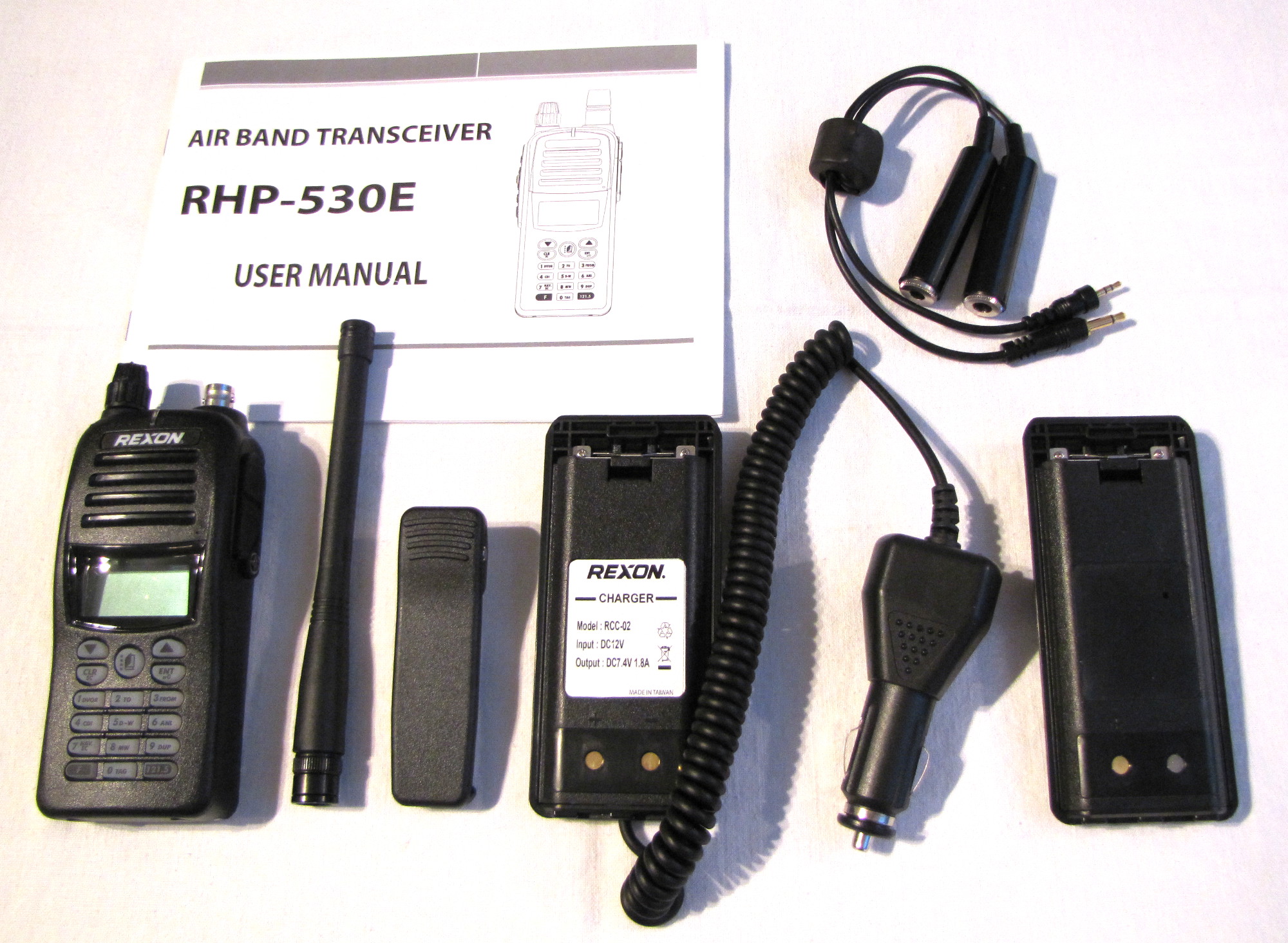

+Power - Basic + Battery Eliminator for 12V power supply RCC-02 model. Battery case for6 AA batteries included.
+Battery - Basic + Li-Po 1700 mah battery pack + 100-240V fast battery charger. Battery case for6 AA batteries included.
The radio can be supplied with Power AND Battery options, as well as with Intercom type B adapter + PTT cable.
2 combos for 1 and 2-place aircraft:
Solo - Radio (Basic) + GA headset for Single place aircraft (glider, paraglider, hangglider, trike, PPC, PPG etc.)

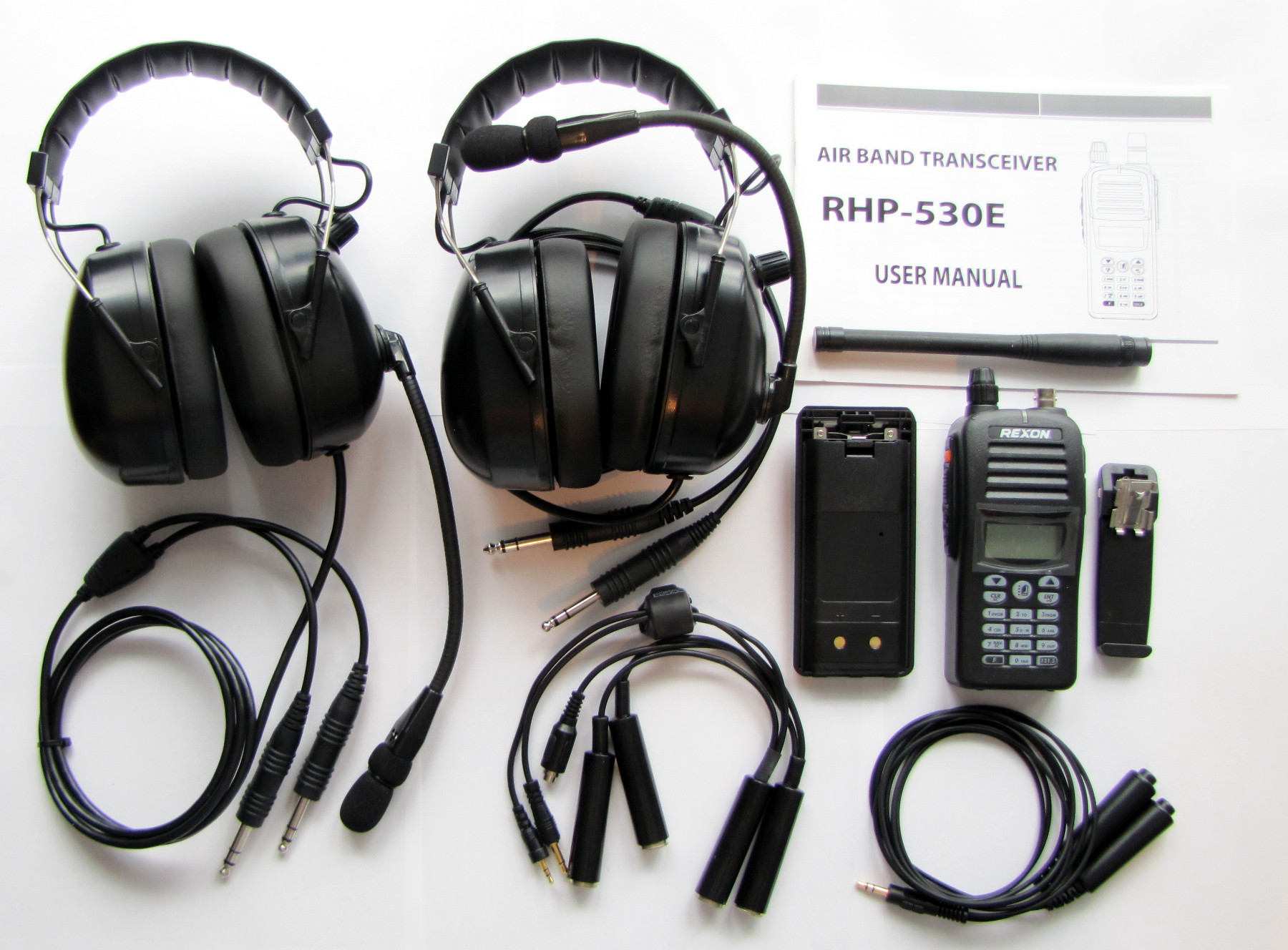

Duo - Radio + Intercom type B adapter + PTT cable + 2xGA headsets. Simple radio-intercom package for 2-place aircraft.
The radio can be supplied with Power AND Battery options
MicroAvionics protective helmets MM020A, MM020B, MM021 can be used with these headsets for open cockpit aircraft.
These PNR headsets are basic, low cost. If you have a noisy of high speed open cockpit aircraft; if you want highest quality sound or listen music while flying, we recommend to think
about more advanced Active Noise Reduction GA and UL MicroAvionics headsets.
Full Rexon and MicroAvionics Pricelist here.
If you want to place an order or ask questions - contact us.
MicroAvionics Intercoms, radio systems, headsets, helmets, strobes...
MicroAvionics communication system is proven as one of the best for open cockpit airctaft included trikes. Micro Arionics products are compatible with
many other brands
(Lynx Avionics, Flycom, MT Autogyro, GA radios/intercoms). They are excellent quality and reasonably priced. More info HERE.
Digital flight data monitor - Airspeed, Altitude, Vertical Speed, Flight Timer, Air Pressure.
This airspeed/altimeter/VSI combo can be installed in a standard 3 1/8 aircraft enclosure.
It is designed based on a precision altimeter and a wide range, sensitive airspeed indicator. It has a Large 2.6 sunlight readable LCD display with
backlight (can be connected through a separate switch), central rotary control, integrated programmable warning light. Very intuitive and user friendly
control interface in English. Easy to switch from Imperial to Metric units. Wide supply voltage range of 9 to 20 VDC, very light (190g or 6.7oz) design.
A perfect solution for small instrument panels, Ultralight and LSA aircraft, excellent back-up gauge.
The airspeed reading can be in nautical miles per hour (knots) or kilometers per hour (kph). The airspeed range 16-150 knots (30-290 kph) and is well suited
for relatively slow aircraft due to a good sensitivity and linearity at low airspeed. There is a programmable integrated warning light
and an audio-out signal for Minimal am Maximal airspeed.
The altimeter conforms to ANSI standard atmosphere rules from 1000 feet up to a maximum of 10000 feet.
it can display altitude in feet or meters.
The vertical speed can be displayed in feet/minute (fpm) or meters/second (mps). The reading by an analog column at the screen center (+/-1000 fpm) +
a digital indication +/-2000 fpm.
The air pressure reading in in millibars or inches or mercury. Memory about the last 5 flights.

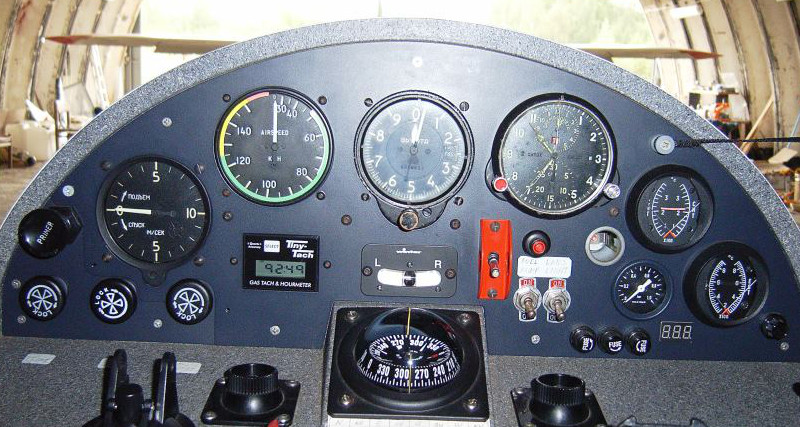

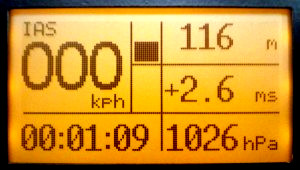

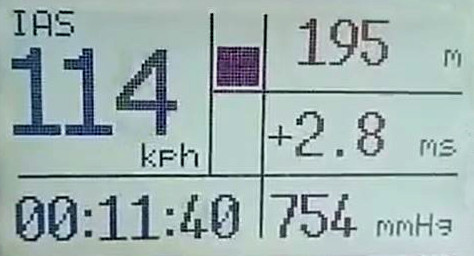

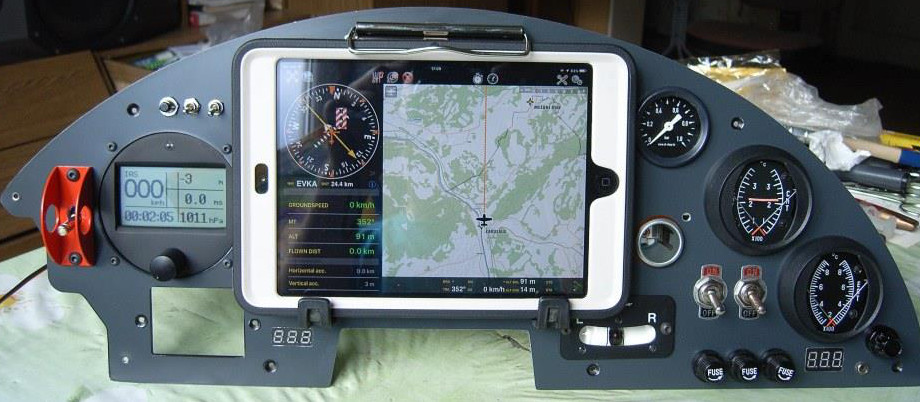

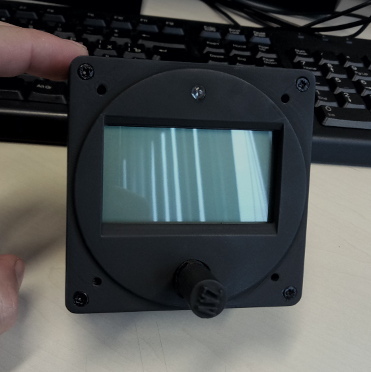

Some pictures below. The screen with backlight on. The gauge front view. One ultralight dashboard before and after "modern digital" modification.
Electro trim kit for Aeros and other trike wings.
The trike wing electric trim was designed for changing the wing hangblock position in flight. It allows changing the trike hands-off speed in flight and takes
excessive load from pilots hands. This makes the trike flying more comfortable, increase useable speed range and makes flight control more precise. It also allows tuning your wing
faster and more accurate. Air Trikes uses this electric trim system as a direct replacement of Aeros trim for Aeros wings, as well as with other brands of trike wings. This is a
very efficient system. For example it allows me to change Profi TL hands-off speed from 50 to 80 MPH. I can't imagine flying my trikes without it.
Two short videos showing the
trim kit with Profi TL wing in flight and to X-14 wing with French 1 hangblock type.
Specifications.
Weight: 2 lb
Voltage: 11-14V DC
Amperage: 0.5-3amp (depends on loading)
Push-pull force max: 300Lb
Static loading max: 400lb
Average speed: per sec.
Length: 8 between holes, 14for Aeros wings (elongation can be ordered).
Travel: 4 (with internal kill switch both sides)
The electric trim kit consists of linear electric motor (servo), control switch, installation hardwere and instruction.
Custom made installation brackets and parts can be used for different wings and trike hangblocks if necessary.
Different variants of the trim kit brackets, elongations and installations below.
BRS parachutes.
Being BRS dealer, Air Trikes install and sell BRS systems for their trikes about 10% cheaper than you can buy them directly from BRS.
We also can supply all new models of BRS chutes for Canadian and American customers. Ask with E-mail if you need exact quotes with delivery to your place.
Floats and skis.
We can supply composite (carbon + fiberglass) floats and skis for your trike or airplane.
Fairings, instrument pods, wheel pants, fenders.
We have different fiberglass parts available for your orders - nose fairings; Manta, DTA and Airborne style dashboards, different wheel fairings
(low profile and finned) for different wheels.
Wheels and wheel rims, hydraulic brake systems, shock absorbers...
We can supply different wheels, brake and suspension elements for your trike or airplane.
Trike cushion seats and seat webbings, trike covers.
